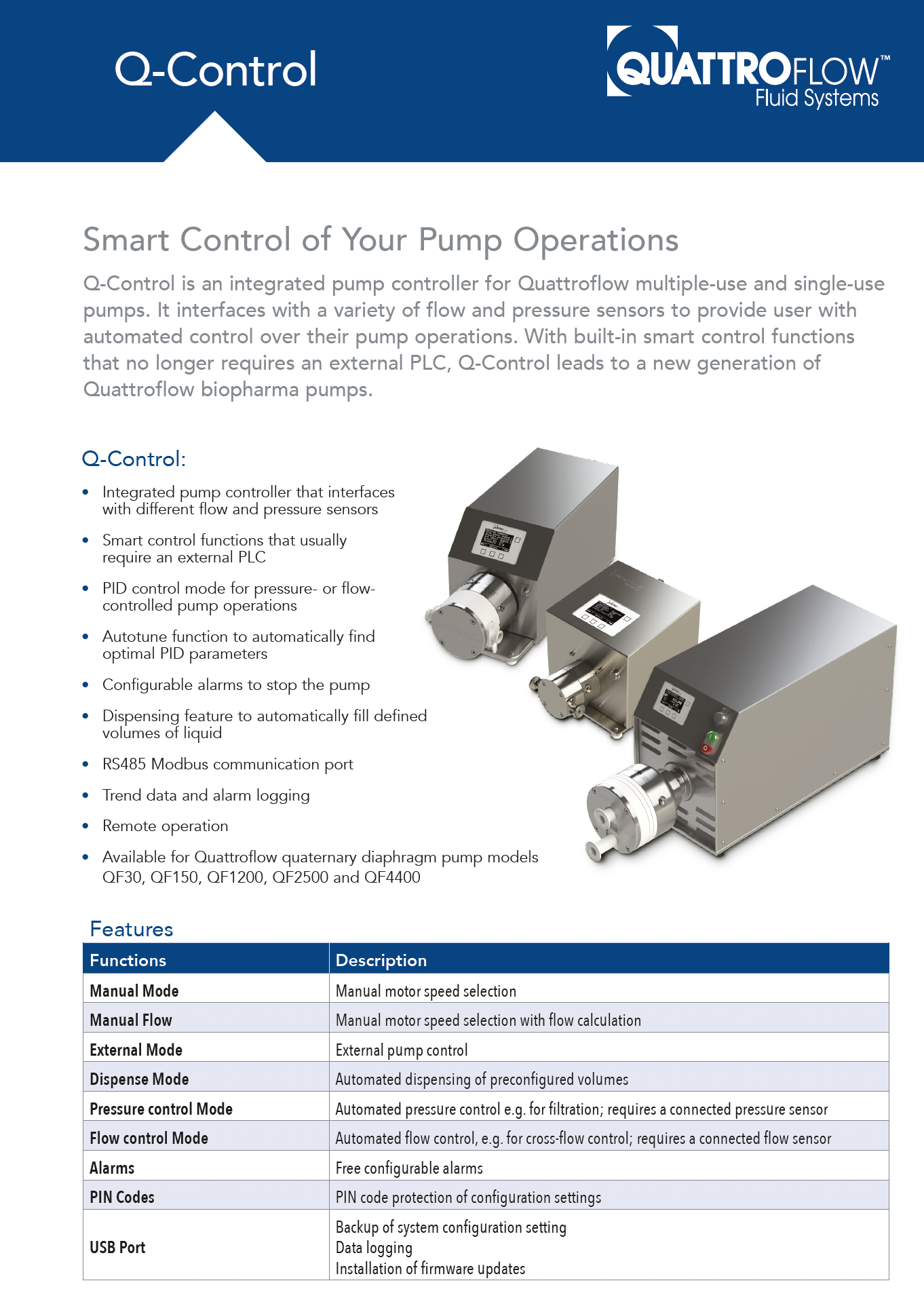

Smart control of your pump operations.
Q-Control is an integrated pump controller for Quattroflow multiple-use and single-use pumps. It interfaces with a variety of flow and pressure sensors to provide user with automated control over their pump operations. With built-in smart control functions that no longer requires an external PLC, Q-Control leads to a new generation ofQuattroflowbiopharma pumps.
- Integrated pump controller that interfaces with different flow and pressure sensors
- NOW AVAILABLE with directEm-tecSensor Connection
- Smart control functions that usually require an external PLC
- PID control mode for pressure- or flow-controlled pump operations
- Autotune function to automatically find optimal PID parameters
- Configurable alarms to stop the pump
- Dispensing feature to automatically fill defined volumes of liquid
- RS485 Modbus communication port
- Trend data and alarm logging
- Remote operation
- Available for Quattroflow quaternary diaphragm pump models: QF30, QF150, QF1200, QF2500 and QF4400
More on Quattroflow
QuattroflowTM Fluid Systems is a leading manufacturer of unique 4-piston diaphragm pumps, offering extremely low shear, pulsation and particulate generation, making them perfect for applications such as chromatography and tagential flow filtration (TFF). Quattroflow pumps are available as both single and multiple use in the pharmaceutical and biotech industries. BPES offer a complete after-sales service and we are proud to be the only Quattroflow Certified Service Centre in the UK. Quattroflow pumps are installed worldwide at companies such as Aventis, Baxter, Chiron, Roche, Sandoz and Boehringer Ingelheim. Quattroflow was founded in 2000, and is a brand of Dover Corporation’s Pump Solutions Group.
Sean’s take on this product
Reliable:Quattroflowpumps are tried and tested across wide variety of biopharma applications. By providing low friction, low sheer, and low pulsation, they are ideal for critical applications in biopharma manufacturing such as Tangential Flow Filtration (TFF), Chromatography, centrifuge feed, and many more. Pumps are available in single as well as multi-use variants, giving you
Quality:Quattroflowpumps are well designed and engineered, offering a long product life with easily performed servicing. Service kits are available for all products, allowing them to be maintained in-house, or through your service contract-provider.
Did you know?
Quattroflowpumps are designed to mimic the human heart in order to give safe, reliable, and efficient transfer of biologics throughout your process.
Make an enquiry
Performance
| FUNCTIONS | DESCRIPTION |
| Manual Mode | Manual motor speed selection |
| Manual Flow | Manual motor speed selection with flow calculation |
| 走读生al Mode | 走读生al pump control |
| Dispense Mode | Automated dispensing of preconfigured volumes |

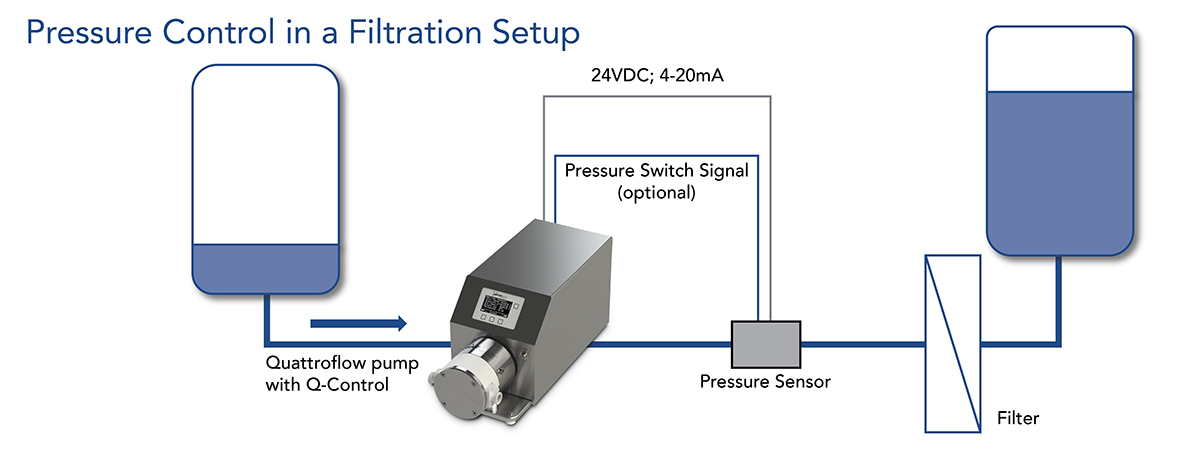

| Pressure Control Mode | Automated pressure control, e.g. for filtration; requires a connected pressure sensor |

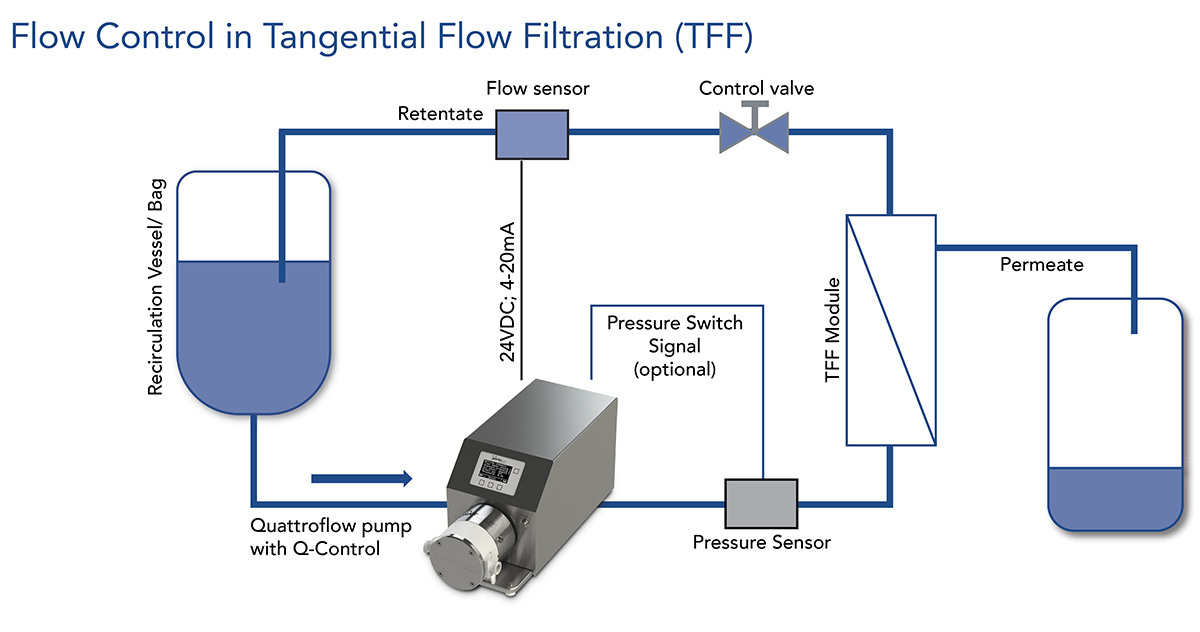

| Flow Control Mode | Automated flow control, e.g. for cross-flow control; requires a connected flow sensor |
| Alarms | Free configurable alarms |
| PIN Codes | PIN code protection of configuration settings |
| USB Port Backup of system configuration setting |
|
Communication
| I/O SIGNALS | POTENTIAL USE |
|---|---|
| 3 x analog input 4-20mA 1 x analog input 0-10 VDC incl. 24 VDC supply voltage for sensors |
走读生al sensor (e.g. pressure and/or flow) 走读生al pump control |
| 3 x digital inputs | 隔膜的监控 走读生al start/stop High pressure switch |
| 1 x RS485 (Modbus RTU) | Signal monitoring Pump remote control |
